Tag reader is the most modern means of identifying service station employees and drivers. It is placed on or next to the pumps and offers possibilities such as:

1. activation of the pump by square employees and maintenance of “electronic wallet” independently for each
2. activation of the pump by a driver who supplies fuel on credit
3. activation of the pump by a driver using a prepaid tag or approach card
4. add bonus points to the driver account, during refueling, automatically and based on the actual fuel purchase value
5. automatic display of the collected bonus points

 Tag reader types

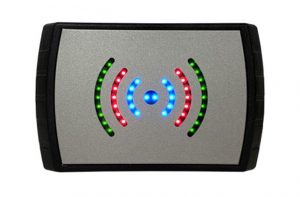

TR 500

The TR500 is a cost-effective contactless tag reader for use in both retail and fleet fueling sites. It allows retail attendants to easily authorize and enable fueling, and fleet drivers to be identified, using MIFARE cards and tags.
The TR500 connects to the station controller, enabling seamless operation of identification, authorization and payment processing for local fleet accounts.

Advanced Features

• Compact and durable outdoor tag
  reader
• Supports MIFARE 13.56 MHz and LF
  125 kHz tags
• User-friendly interface with LED and
  audio indicators
• Easy to install
• Remote set-up, configuration, and
  maintenance and Software update
  over TCP/IP or RS485

TR 500 Benefits

• Enhances fueling control utilizing the attendants’ tags
• Enables local fleet accounts to be identified using their personal tags/cards
• Fully integrated with Gilbarco’s AVI and retail solutions
• Cost-effective tag reader reduces expenses
• Attendant tagging. Simplified.
• TR500 is a cost-effective contactless tag reader for use in both retail and fleet fueling sites. It allows retail attendants to easily authorize and enable fueling, and fleet drivers to be identified, using MIFARE cards and tags. The TR500 connects to the station controller, enabling seamless operation of identification, authorization and payment processing for local fleet accounts.
• The TR500 device can be installed directly on the dispenser or wall-mounted next to it. The tag reader supports authorization via contactless MIFARE 13.56 MHz cards & tags as well as LF 125 kHz tags. It also includes a Security Application Module (SAM) used to handle encrypted tags.



TR1000

TR1000 is Gilbarco Veeder-Root’s cost-effective outdoor payment terminal reader installed directly onto the dispenser or wall mounted next to it, for both attended and unattended activities.
The terminal boasts advanced user interface and supports a wide range of payment options, including:
– MiFare Tags, 125KHz Tags,
– magnetic stripe cards, 2D barcode reader for
– vouchers and coupons, and much more.

Advance features TR 1000

• Enables all common authorization methods
• Built-in pump interface directly controls the pump from the terminal
• Designed for both retail and commercial fleet markets
• Fuel and fleet card purchases, forecourt promotions, local accounts, loyalty schemes,
  and attendant management.

TR 1000 Benefits

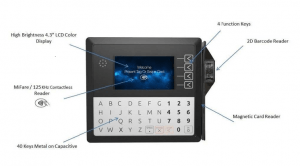

The TR1000 payment terminal is small enough to fit in any standard pump head or pedestal, yet provides an amazingly efficient advanced user interface with its 4.3 multimedia colour display, 4 screen addressable keys, and full alphanumeric vandal proof 40-key keyboard.
Additionally, the device enables various communication interfaces such as LAN, RS-485 to the station controller (FCC) or POS.

Benefits for Gas Stations

• Payment flexibility for your customers with a wide range of payment options
• Connects you with your customers while they fuel, and enables generating store revenues through promotions
• Enhanced user interface with eyecatching content in colour and animation
• Built-in pump interfaces with optional wireless communication
• Quick and simple deployment and integration in the forecourt
• Fully integrated with Gilbarco VeederRoot’s Retail, Cloud, and Automation solutions as well as a range of 3rd party POS systems

Benefits for Fleets

• Durable cost-effective terminal for fueling authorization and fleet fuel purchases
• Simple to use with colour display, full alphanumeric keyboard, and addressable screen keys
• Fully integrated with Gilbarco VeederRoot’s automation solution for homebase stations
• Straightforward maintenance through remote access for software update,diagnostics, and remote setup.
